Tata Ultra T7 Bs6 price, gvw & detailed specifications
TATA Ultra T7 BS6 4x2
Latest Price
Range ₹14,95,000.00 to ₹16,98,000.00.
TATA Ultra T7 latest price range starts from ₹14,95,000.00
to ₹16,98,000.00 lakhs onwards & Price Varies Depending on its Wheel
Base & Specifications.
TATA Ultra T7 in Brief Description.
TATA Ultra T7 is an 4x2 axle configurated 4-wheeler
& 6-wheeler BS6 N2 category goods carrier 7,300Kg
/ 7.30 Tonne & 7,490Kg / 7.49 Tonne tonnage GVW truck with
3310mm, 3550mm, 3920mm wheelbase
combinations & 12ft (3.6m), 14ft (4.3m),
17ft (5.2m), 20ft (6.1m) load body length options specially designed
for applications like Market Load, Fruits and Veg,
FMCG, white Goods, E Commerce, Parcel & Courier, Reefers, Containers,
Industrial Goods, Pipes, Furniture, Plastic & Chemicals, LPG cylinder,
Milk, Bottle carriers, Fish & Fish Feed Etc... All Specifications of
Tata T7 Ultra is mentioned detailed in below photos as downloadable form.
TATA Ultra T7 GVW Gross Vehicle Weight (Tonnage).
7,300Kg / 7.30 Tonne & 7,490Kg / 7.49 Tonne is the GVW of Tata Ultra T7.
TATA Ultra T7 Chassis Options, Wheelbase & Load body length.
Option 1 – CBC, FSD, HSD - 3310mm wheelbase & load body span of 12ft (3.6m). - Single Tyre.
Option 2 – CBC, FSD, HSD - 3550mm wheelbase & load body span of 14ft (4.3m)- Single Tyre.
Option 3 – CBC, FSD, HSD - 3550mm wheelbase & load body span of 14ft (4.3m)- Double Tyre.

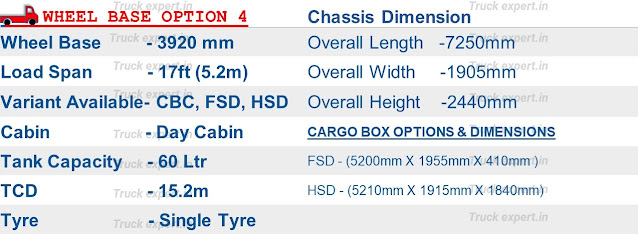

Option 4 – CBC, FSD, HSD - 3920mm wheelbase & load body span of 17ft (5.2m)- Single Tyre.
Option 5 – CBC, FSD, HSD - 3920mm wheelbase & load body span of 17ft (5.2m)- Double Tyre.
Option 6 – CBC, FSD, HSD - 4530mm wheelbase & load body span of 20ft (6.1m)- Double Tyre.
TATA Ultra T7 Engine Specification.
Tata Ultra T7 forward controlled engine comes with a maximum engine output power of 73.5 kW (100PS) @ 2800 rpm & a maximum torque of 300 Nm @ 1200 -2200 rpm at the drive axle. This power is Produced from an 4SPCR series BS6,4-cylinder 2956 cc Diesel engine.
TATA Ultra T7 Transmission.
6 Speed (5 forward & 1 reverse) synchromesh Transmission system
TATA Ultra T7 Clutch.
280mm Diameter Single Plate Dry Friction Type.
TATA Ultra T7 Suspension.
Front Suspension - Semi elliptic spring, Parabolic spring (Optional), 2 no’s Hydraulic Double acting Shock Absorbers with Antiroll bar.
Rear Suspension - Semi elliptical leaf spring.
TATA Ultra T7 Steering.
Power Steering.
TATA Ultra T7 Braking.
Service Braking - Air Brakes with auto Slack Adjustor
Parking Braking - Transmission mounted parking drum brake.
TATA Ultra T7 Fuel & AdBlue.
Fuel Tank Capacity - 60 Ltr.
Material - Metal.
AdBlue Tank Capacity - 18 Ltr.
TATA Ultra T7 Electrical.
Electrical System - 12V, 75Ah.
TATA Ultra T7 Tyre Size.
Option 1: Single Tyre - 235/75 R 17.5, 14 PR
Option 2: Double Tyre - 215/75 R 17.5, 14 PR
No of Tyre (Front + Rear + Spare)- 2+2+1 & 2+4+1
TATA Ultra T7 Gradeability.
Gradeability - 30%
TATA Ultra T7 Seating Capacity.
Seating Capacity- Driver + 1
Wheel base / Loading span may vary based on load-road-application selected .
Specifications are subject to change and are for reference only
