Ashok Leyland 3120 6x2 DTLA price, gvw & detailed specifications.



Ashok Leyland 3120 6x2 DTLA BS6

Latest Price Range ₹ to ₹

Ashok leyland 3120 6x2 series truck latest price range starts from ₹ to ₹ lakhs onwards, Ashok leyland 3120 Price Varies Depending on its Wheel Base, Load Body options & Specifications. Ashok leyland 3120 is a truck with 31,000Kg Gross vehicle weight. The engine powering this truck is 5333cc H series BS-6 6 -cylinder CRS with iGen6 Technology producing Power of 147kw~ 250Hp @ 2200 rpm and a Torque of 700 Nm @ 1200-2000 rpm.

Ashok leyland 3120 is a 6x2 goods carrier available in COWL-Cowl & Chassis (chassis without load body & cabin)  & CBC-Cab & Chassis which is chassis without loadbody. The Ashok leyland 3120 comes with a 4930mm, 5230mm, 5680mm, 5980mm wheelbase options & load body span of 24.4ft (7.46m), 26.6ft (8.11m), 28.5ft (8.71m), 30.5ft (9.31m), 31.8ft (9.71m).

The specifications of Ashok leyland 3120 is well described below, if you are serious about buying a new truck then refer truckexpert.in for the latest range of trucks available in India.

Ashok Leyland 3120 6x2 DTLA BS6 Chassis Drawings

This all wheelbase variants in leyland 3120-6x2-DTLA "Dual Tyre Lift Axle" comes with G- Cowl / Cowl Chassis - Chassis without cabin & loadbody (Cabin & loadbody has to be built from Type Approved Body Builder) & CBC / Cab & Chassis -Chassis with OE Builted Cabin & The load body has to be builted from a Type Approved truck body builder

Ashok leyland 3120 -6x2-DTLA Series option 1

    Ashok leyland 3120 6x2 Series of 4930 mm wheelbase have a load body span of 24.4ft (7.460m), the overall dimensions of cab & chassis(chassis without loadbody) are mentioned above including its overall length -9710 mm, overall width - 2570mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 20.2m.

Ashok leyland 3120 -6x2-DTLA Series option 2

    Ashok leyland 3120 6x2 Series of 5230 mm wheelbase have a load body span of 26.6ft (8.110m), the overall dimensions of cab & chassis(chassis without loadbody) are mentioned above including its overall length -10360 mm, overall width - 2570mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 22m.

Ashok leyland 3120 -6x2-DTLA Series option 3

    Ashok leyland 3120 6x2 Series of 5680 mm wheelbase have a load body span of 28.5ft (8.710m), the overall dimensions of cab & chassis(chassis without loadbody) are mentioned above including its overall length -10960 mm, overall width - 2570mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 22.9m.

Ashok leyland 3120 -6x2-DTLA Series option 4

    Ashok leyland 3120 6x2 Series of 5680 mm wheelbase have a load body span of 30.5ft (9.310m), the overall dimensions of cab & chassis(chassis without loadbody) are mentioned above including its overall length -11560 mm, overall width - 2570mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 23.8m.

Ashok leyland 3120 -6x2-DTLA Series option 5

    Ashok leyland 3120 6x2 Series of 5980 mm wheelbase have a load body span of 31.8ft (9.710m), the overall dimensions of cab & chassis(chassis without loadbody) are mentioned above including its overall length -11960 mm, overall width - 2570mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 24m.

Ashok leyland 3120 -6x2-DTLA Series - Engine Specification

        Ashok leyland 3120 comes with a maximum engine output power of 250 hp @ 2200 rpm & a maximum torque of 700N-m @ 1200-2000 rpm at the rear drive axle, this power is Produced from a 5333cc H series BS-6 6-cylinder CRS with iGen6 Technology engine. The engine is forward control & this vehicle comes under N3 category.

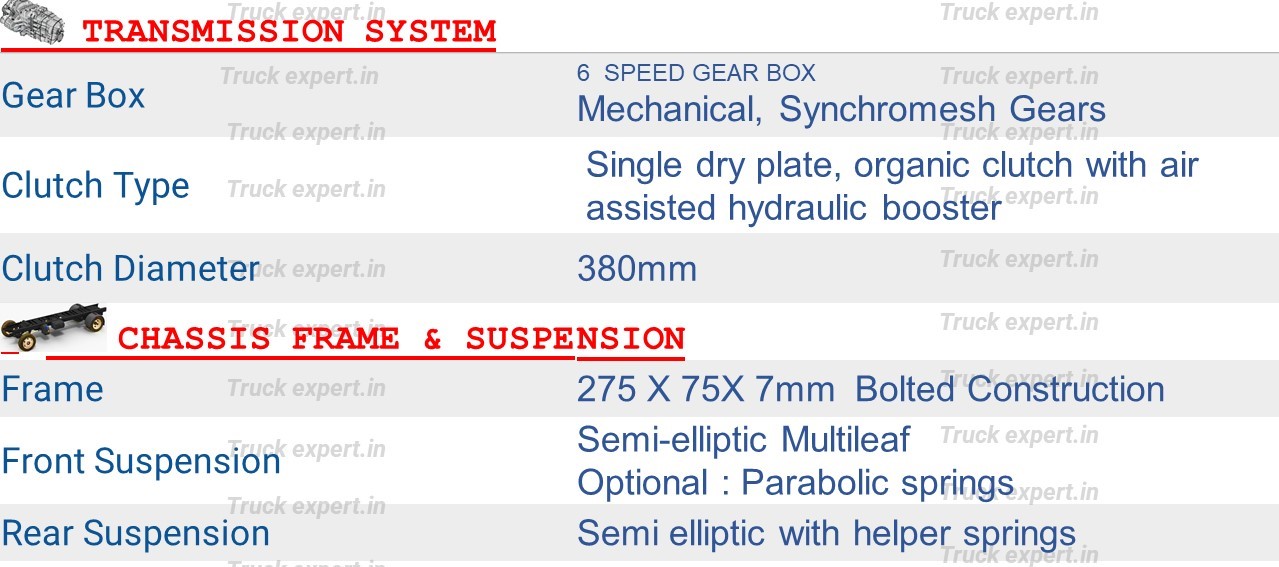

Ashok leyland 3120 -6x2-DTLA Series - Transmission & Suspension

The engine of Ashok leyland 3120 is coupled with a 6 Speed(6 forward & 1 reverse) synchromesh Transmission system with a single plate dry organic type clutch with air assisted hydraulic booster, the clutch has a Diameter of 380mm.

The chassis frame Section of Ashok leyland 3120 is 275 x 75 x 7mm.

Ashok leyland 3120 comes with semi elliptical Multi leaf springs or Parabolic Springs at front suspension & semi elliptical with helper springs at Rear suspension.

Ashok leyland 3120 -6x2-DTLA Series - Cabin & Steering System

Ashok leyland 3120 have a integral power steering, The Sleeper cabin gives a good comfort with the overall ground clearance of 253mm. The maximum speed attained is about 80kmph  & 60kmph for POL Variant.

The maximum seating capacity in ashok leyland 3120 is 2 including driver & Air Conditioning is optional.

Ashok leyland 3120 -6x2- DTLA Series - Brake System

The service brakes are pneumatic foot operated Full air dual line system with ABS (Anti-Lock Braking System) acting on wheels & Auto exhaust brakes. The front & rear wheels are having drum brakes.

Ashok leyland 3120 -6x2-DTLA Series - Tyre size

The Ashok leyland 3120 Series comes with tyre size of 295/90 R20-16PR.

Ashok leyland 3120 Series - Fuel Capacity & Electrical

The fuel tank capacity is 220Ltr & 375 Ltr and Adblue Capacity of 48Ltr. The Electrical system consist of 24V,120AH for Non Ac Models & 150AH for Ac Models.

FEATURES-Ashok Leyland 3120 Series

• Proven iEGR Technology

• Best in class fuel efficiency

• Superior Tyre Mileages

• 3Tonne extra GVW over other 6x2 drive trucks

Frequently asked questions about Ashok leyland 3120 6x2 Series trucks

Q.    What is DTLA in ashokleyland terms ?

A.    DTLA means Dual Tyre Lift Axle Vehicle.

Q.    What is the gvw ( Gross Vehicle Weight ) of ashokleyland 3120 Series Trucks ?

A.    31,000 Kg is the gvw of ashokleyland 3120 6x2 series trucks .

Q.    What all are the available wheelbase of  ashok leyland 3120 trucks?

A.    4930mm, 5230mm, 5680mm, 5980mm are wheelbase options in ashokleyland 3120 Series trucks.

Q    What is the Tyre Size of  ashok leyland 3120 series truck ?

A    295/90R20-16PR  is the Tyre Size of  leyland 3120 6x2 trucks.

Q    What is the Front & Rear track width of  ashok leyland 3120 series truck ?

A    295/90R20 the Front Track width is 2084mm & the rear track width is 1876mm. In case of radial tubeless tyres the track width differs as 2094mm .

Q    What is the Minimum ground clearance of  leyland 3120 trucks ?

A    253mm is the minimum ground clearance of leyland 3120 series trucks.

Q    Which type of applications does 3120 trucks ideal fit ?

A  Ashok Leyland 3120 6x2 Series is specially designed for higher payload and ideal fit for applications like  Market Load, Cement, Bulker, POL Tanker.
