Ashok Leyland Ecomet Star 1015 HE BS6

Latest Price Range ₹17,53,453.00 to ₹18,54,139.00

Ashokleyland Ecomet Star 1015HE latest price range starts from ₹17,53,453.00 to ₹18,54,139.00 lakhs onwards, Ashok leyland Ecomet Star 1015HE Price Varies Depending on its Wheel Base, Load body options & Specifications. Ashok leyland Ecomet Star 1015HE is a truck with 11,120Kg gross vehicle weight. The engine powering this truck is 3840cc H series BS-6 4-cylinder CRS with iGen6 Technology producing Power of 150 HP @ 2400 rpm and a Torque of 450 Nm @ 1250-2000 rpm.
Ashok leyland Ecomet Star 1015HE is a 4x2 goods carrier available in load body type like FSD-Fixed side deck, DSD-Drop Side deck, HSD-High side deck & CBC-Cab & Chassis which is chassis without loadbody. The ashok leyland ecomet star 1015HE comes with a 2850mm, 3250mm, 3970mm, 4200mm wheelbase options & load body span of 12ft (3.7m), 14ft (4.3m), 17ft (5.2m), 19ft (5.8m).

The specifications of Ashok leyland Ecomet Star 1015HE are well described below, if you are serious about buying a new truck then refer to truckexpert.in for the latest range of trucks available in India.

Ashok Leyland Ecomet Star 1015 HE

The Detailed Specification Of Ashok Leyland Ecomet 1015 HE Truck Variant are as described below

Ashok leyland Ecomet Star 1015HE option 1 Ashok leyland Ecomet Star 1015 HE of 2850mm wheelbase have a load body span of 12.3ft (3.7m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-5084mm, overall height-2700mm, overall width- 2207mm & fuel tank capacity of 105 Ltr. This vehicle comes with only CBC -Cab & Chassis option. Please refer the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1015HE option 2 Ashok leyland Ecomet Star 1015 HE of 3250mm wheelbase have a load body span of 14ft (4.3m) , the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-6070mm, overall height-2780mm, overall width- 2207mm, & fuel tank capacity of 185 Ltr. This vehicle comes with built body options like drop side deck & high side deck load body options with an internal cargo box / load body length of 4380mm & a width of 2306mm / 2260mm, the internal height of drop side deck is 583mm & high side deck is 1105mm.Please refer the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1015HE option 3 Ashok leyland Ecomet Star 1015 HE of 3970mm wheelbase have a load body span of 17ft (5.2m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-7030mm, overall height-2700mm, overall width-2207mm & fuel tank capacity of 185 Ltr. This vehicle comes with built body options like fixed side deck & high side deck load body options with an internal cargo box / load body length of 5285mm / 5287mm & a width of 2306mm / 2260mm, the internal height of fixed side deck is 594mm & high side deck is 1105mm. Please refer the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1015HE option 4 Ashok leyland Ecomet Star 1015 HE of 4200mm wheelbase have a load body span of 20ft (5.8m) the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-7605mm, overall height - 2700mm, overall width - 2207mm, & fuel tank capacity of 185 Ltr. This vehicle comes with built body option high side deck load body options with an internal cargo box / load body length of 5810mm / 6096mm & a width of 2260mm, the internal height of 1105mm. Please refer the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1015HE - Engine Specification Ashok leyland Ecomet Star 1015 HE comes with a maximum engine output power of 150 hp @ 2400 rpm & a maximum torque of 450N-m @ 1250-2000 rpm at the rear drive axle, this power is Produced from a 3840cc H series BS-6 4-cylinder CRS with iGen6 Technology engine. The engine is forward control & This vehicle comes under the N2 category.

Ashok leyland Ecomet Star 1015HE- Transmission & Suspension The engine of Ashok leyland Ecomet Star 1015 HE is coupled with a 6 Speed ODGB - FGR 6.93, cable CSO system (6 forward & 1 reverse) synchromesh Transmission system with a single plate dry type clutch with clutch booster, the clutch has a Diameter of 330mm. The chassis frame Section of Ashok leyland Ecomet Star 1015 HE is 204 x 76 x 6mm. Ashok leyland Ecomet Star 1015 HE comes with semi elliptical multi leaf at front suspension & rear suspension.

Ashok leyland Ecomet Star 1015HE- Brake System The service brakes are pneumatic foot operated dual line systems acting on wheels & Parking Brakes at rear wheels only. The front & rear wheels have drum brakes.Ashok leyland Ecomet Star 1015HE- Fuel Capacity & Electrical The fuel tank capacity is 105Ltr for 2850mm wheelbase & 185Ltr for remaining all other wheel bases, Adblue Capacity is 24Ltr. The Electrical system consist of 12V,120AH, 90A- alternator.

Ashok leyland Ecomet Star 1015HE- Tyre size The Ashok leyland Ecomet Star 1015 HE comes with cross ply tube tyre size of 8.25-16;16PR. the front wheel track is 1875mm & Rear wheel track is about 1689mm.

Ashok leyland Ecomet Star 1015HE option 1

Ashok leyland Ecomet Star 1015 HE of 2850mm wheelbase have a load body span of 12.3ft (3.7m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-5084mm, overall height-2700mm, overall width- 2207mm & fuel tank capacity of 105 Ltr. This vehicle comes with only CBC -Cab & Chassis option. Please refer to the top of the page for detailed specifications.

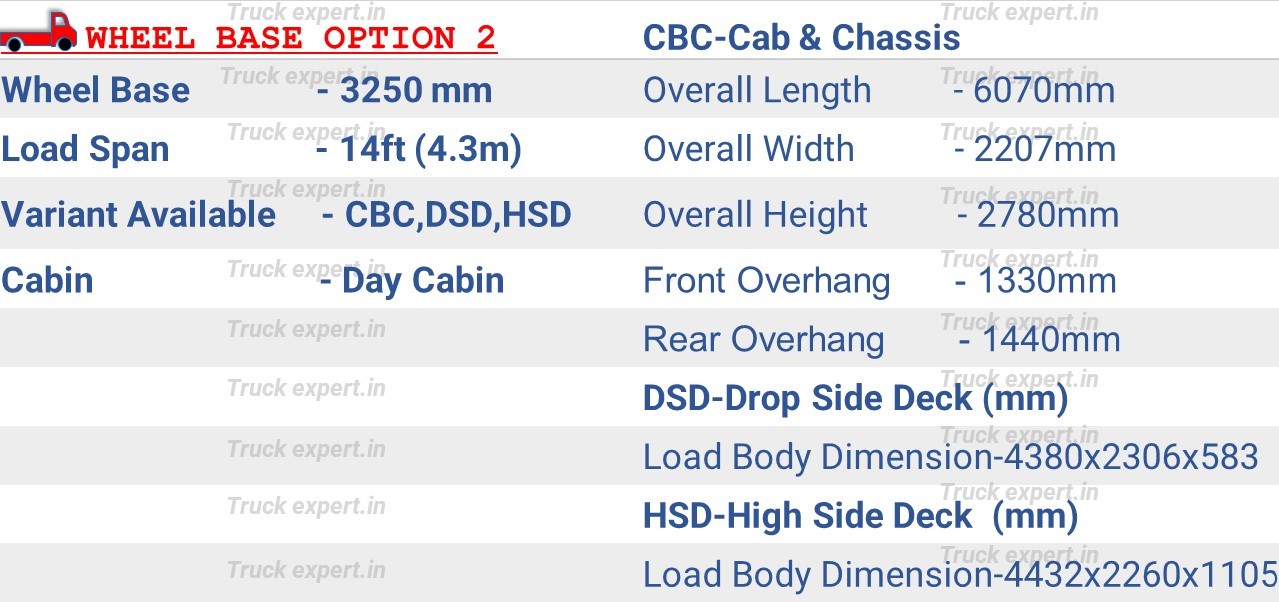

Ashok leyland Ecomet Star 1015HE option 2

Ashok leyland Ecomet Star 1015 HE of 3250mm wheelbase have a load body span of 14ft (4.3m) , the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-6070mm, overall height-2780mm, overall width- 2207mm, & fuel tank capacity of 185 Ltr.
This vehicle comes with built body options like drop side deck & high side deck load body options with an internal cargo box / load body length of 4380mm & a width of 2306mm / 2260mm, the internal height of drop side deck is 583mm & high side deck is 1105mm.Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1015HE option 3

Ashok leyland Ecomet Star 1015 HE of 3970mm wheelbase have a load body span of 17ft (5.2m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-7030mm, overall height-2700mm, overall width-2207mm & fuel tank capacity of 185 Ltr.
This vehicle comes with built body options like fixed side deck & high side deck load body options with an internal cargo box / load body length of 5285mm / 5287mm & a width of 2306mm / 2260mm, the internal height of fixed side deck is 594mm & high side deck is 1105mm. Please refer to the top of the page for detailed specifications.

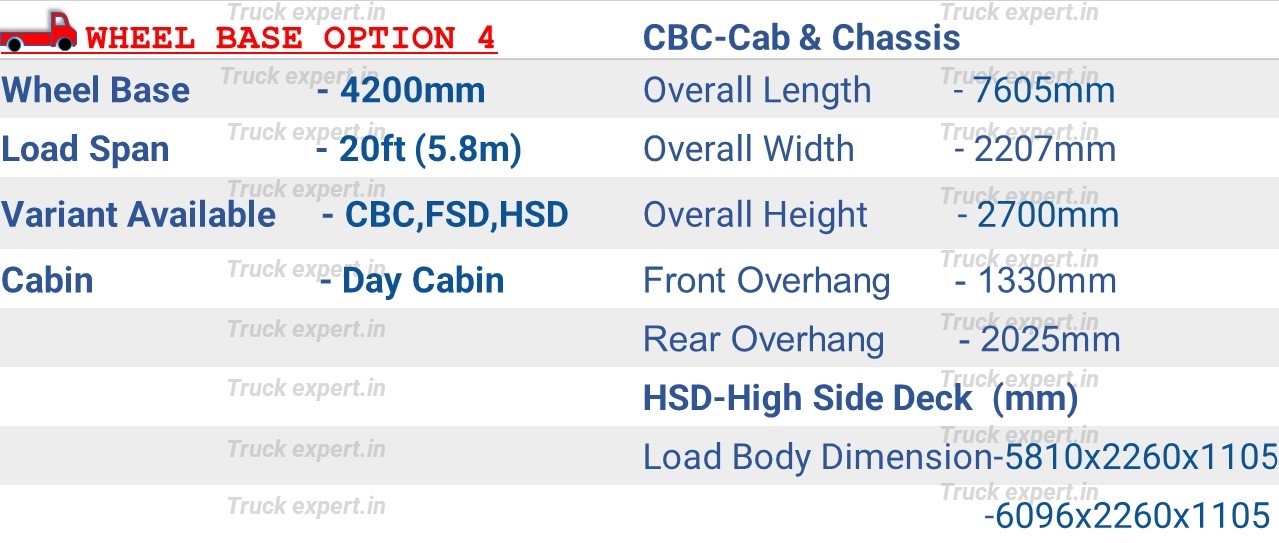

Ashok leyland Ecomet Star 1015HE option 4

Ashok leyland Ecomet Star 1015 HE of 4200mm wheelbase have a load body span of 20ft (5.8m) the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-7605mm, overall height - 2700mm, overall width - 2207mm, & fuel tank capacity of 185 Ltr.
This vehicle comes with built body option high side deck load body options with an internal cargo box / load body length of 5810mm / 6096mm & a width of 2260mm, the internal height of 1105mm. Please refer to the top of the page for detailed specifications.

Ashok leyland Ecomet Star 1015HE - Engine Specification

Ashok leyland Ecomet Star 1015 HE comes with a maximum engine output power of 150 hp @ 2400 rpm & a maximum torque of 450N-m @ 1250-2000 rpm at the rear drive axle, this power is Produced from a 3840cc H series BS-6 4-cylinder CRS with iGen6 Technology engine. The engine is forward control & This vehicle comes under the N2 category.

Ashok leyland Ecomet Star 1015HE- Transmission & Suspension

The engine of Ashok leyland Ecomet Star 1015 HE is coupled with a 6 Speed ODGB - FGR 6.93, cable CSO system (6 forward & 1 reverse) synchromesh Transmission system with a single plate dry type clutch with clutch booster, the clutch has a Diameter of 330mm. The chassis frame Section of Ashok leyland Ecomet Star 1015 HE is 204 x 76 x 6mm. Ashok leyland Ecomet Star 1015 HE comes with semi elliptical multi leaf at front suspension & rear suspension.

Ashok leyland Ecomet Star 1015HE- Cabin & Steering System

Ashok leyland Ecomet Star 1015 HE has an integral power steering, The Tiltable ecomet star day cabin gives a good comfort with the overall ground clearance of 260mm.

Ashok leyland Ecomet Star 1015HE- Brake System

The service brakes are pneumatic foot operated dual line systems acting on wheels & Parking Brakes at rear wheels only. The front & rear wheels have drum brakes.

Ashok leyland Ecomet Star 1015HE- Tyre size

The Ashok leyland Ecomet Star 1015 HE comes with cross ply tube tyre size of 8.25-16;16PR. the front wheel track is 1875mm & Rear wheel track is about 1689mm.

Ashok leyland Ecomet Star 1015HE- Fuel Capacity & Electrical

The fuel tank capacity is 105Ltr for 2850mm wheelbase & 185Ltr for remaining all other wheel bases, Adblue Capacity is 24Ltr.
The Electrical system consists of a 12V,120AH, 90A- alternator.

Ashok leyland Ecomet Star 1015HE- Feature

Superior mileage: Proven iEGR Technology
Gear shift adviser system (GSAS)
Lower Diesel Exhaust Fluid (DEF) consumption
Rear Park Alert System (RPAS)
NexGen i-alert (Fleet management, fuel monitoring-diagnostics, remote access)

Ashok leyland Ecomet Star 1015HE Warranty

4 Year / 4 Lakh Km on drive line

Frequently Asked Questions about Ashok Leyland Ecomet star 1015 HE

Q. What is the gvw (Gross Vehicle Weight) of ashokleyland ecomet star 1015 HE?

A. 11120 Kg is the gvw of ashokleyland ecomet star 1015 HE .

Q. What all are the available wheelbase of ashokleyland Ecomet star 1015 HE?

A. 3850mm, 3250mm, 3970mm, 4200mm are the available wheelbase for ashokleyland Ecomet 1015HE.

Q. What all are the available Load Body Span of ashokleyland Ecomet star 1015 HE?

A. 12ft(3.7m), 14ft(4.3m), 17ft(5.2m), 19ft(5.8m) are the available wheelbase for ashokleyland ecomet star 1015HE.

Q. What is the Tyre Size of ashokleyland ecomet star 1015 HE ?

A. 8.25x16 16 PR is the Tyre size of ashok leyland ecomet star 1015HE.

Q. What is the Kerb Weight of ashokleyland ecomet star 1015 HE?

A. Ashokleyland Ecomet 1015 HE have a Kerb weight of 3594kg to 3658Kg depending upon wheel base for its "cab chassis- chassis with no load body"

Q. What is the Payload of ashokleyland Ecomet star 1015 HE?

A. Ashokleyland ecomet 1015HB have a payload of 7526Kg to 7462Kg depending upon wheel base for its "cab chassis- chassis with no load body"

Q. What is the Front Track width of Ashok Leyland ecomet star 1015 HE ?

A. 1875mm is the front track width of ashok leyland ecomet 1015 HE Truck.

Q. What is the Rear Track width of Ashok Leyland ecomet star 1015 HE ?

A. 1687mm is the front track width of ashok leyland 1015 HE Truck

Q. Which type of Applications does Ashokleyland ecomet star 1015 HE ideal fit ?

A. Ashok Leyland ecomet 1015HB is specially designed for higher payload and ideal fit for applications like White goods, Agri goods, Parcel & Logistics, Market load, Fruits & vegetables, Autoparts, Fuel Bowser.
