Ashok Leyland 2820 6x2 Series price, gvw & detailed specifications.
Ashok Leyland 2820 6x2 Series BS6
Latest Price Range ₹29,68,192.00 to ₹30,33,600.00
Ashok leyland 2820 6x2 series truck latest price range starts from ₹29,68,192.00 to ₹30,33,600.00 lakhs onwards, Ashok leyland 2820 Price Varies Depending on its Wheel Base, Load Body options & Specifications. Ashok leyland 2820 is a truck with 28,000Kg Gross vehicle weight. The engine powering this truck is 5760cc H series BS-6 6-cylinder CRS with iGen6 Technology producing Power of 147kw~ 200Hp @ 2400 rpm and a Torque of 700 Nm @ 1200-2000 rpm.
Ashok leyland 2820 is a 6x2 goods carrier available in load body type like FSD-Fixed side deck, HSD-High side deck & CBC-Cab & Chassis which is chassis without loadbody. The Ashok leyland 2820 comes with a 4700mm, 5050mm, 5450mm, 5750mm, 6000mm, 6300mm wheelbase options & load body span of 22ft (6.7m), 24ft (7.2m), 26ft (7.9m), 28ft (8.5m), 30ft (9.2m), 32ft (9.6m).
The specifications of Ashok leyland 2820 is well described below, if you are serious about buying a new truck then refer to truckexpert.in for the latest range of trucks available in India.
 |
| Ashok Leyland 2820 6x2 MAV Series Truck- Chassis Layout |
This all wheelbase variants in leyland 2820-MAV "Multi Axle Vehicle" comes with built body options like fixed side deck & high side deck load body options with an cabin combinations of G- Cowl (Cabin has to be built from Type Approved Body Builder), M-Cabin, U-Cabin & N-Cabin. Please refer the top of the page for detailed specifications.
Ashok leyland 2820 -6x2-MAV Series option 1
Ashok leyland 2820 6x2 Series of 4700 mm wheelbase have a load body span of 22ft (6.7m), the overall dimensions of cab & chassis (chassis without loadbody) are mentioned above including its overall length -9110 mm, overall width - 2570 mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 15.7m.
*The Ashok leyland 2820 of 4700mm wheelbase may have an option of 20ft loading span chassis .

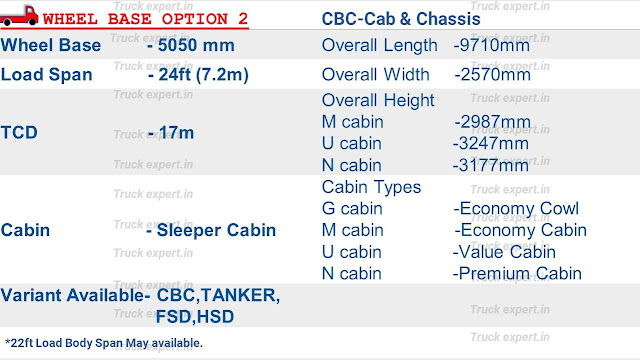

Ashok leyland 2820 -6x2-MAV Series option 2
Ashok leyland 2820 6x2 Series of 5050 mm wheelbase have a load body span of 24ft (7.2m), the overall dimensions of cab & chassis (chassis without loadbody) are mentioned above including its overall length -9710 mm, overall width - 2570 mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 17m.
*The Ashok leyland 2820 of 5050mm wheelbase may have an option of 22ft loading span chassis .
Ashok leyland 2820 -6x2-MAV Series option 3
Ashok leyland 2820 6x2 Series of 5450 mm wheelbase have a load body span of 26ft (7.9m), the overall dimensions of cab & chassis (chassis without loadbody) are mentioned above including its overall length -10360 mm, overall width - 2570 mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 17m.
*The Ashok leyland 2820 of 5450mm wheelbase may have an option of 24ft loading span chassis .
Ashok leyland 2820 -6x2-MAV Series option 4
Ashok leyland 2820 6x2 Series of 5750 mm wheelbase have a load body span of 28ft (8.5m), the overall dimensions of cab & chassis (chassis without loadbody) are mentioned above including its overall length -10960 mm, overall width - 2570 mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 19.7m.
*The Ashok leyland 2820 of 5750mm wheelbase may have an option of 26ft loading span chassis .
Ashok leyland 2820 -6x2-MAV Series option 5
Ashok leyland 2820 6x2 Series of 6000 mm wheelbase have a load body span of 30ft (9.2m), the overall dimensions of cab & chassis (chassis without loadbody) are mentioned above including its overall length -11560 mm, overall width - 2570 mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 20.7m.
*The Ashok leyland 2820 of 6000mm wheelbase may have an option of 28ft loading span chassis .
Ashok leyland 2820 -6x2-MAV Series option 6
Ashok leyland 2820 6x2 Series of 6300 mm wheelbase have a load body span of 32ft (9.6m), the overall dimensions of cab & chassis (chassis without loadbody) are mentioned above including its overall length -11960 mm, overall width - 2570 mm & Overall Height varies with cabin options "M" Cabin-2987mm, "U" Cabin-3247mm, "N" Cabin-3177mm Turning circle Diameter of 22.7m.
*The Ashok leyland 2820 of 6300mm wheelbase may have an option of 30ft loading span chassis .
Ashok leyland 2820 -6x2-MAV Series - Engine Specification
Ashok leyland 2820 comes with a maximum engine output power of 200 hp @ 2400 rpm & a maximum torque of 700N-m @ 1200-2000 rpm at the rear drive axle, this power is Produced from a 5760cc H series BS-6 6-cylinder CRS with iGen6 Technology engine. The engine is forward control & this vehicle comes under N3 category.
Ashok leyland 2820 -6x2-MAV Series - Transmission & Suspension
The engine of Ashok leyland 2820 is coupled with a 6 Speed(6 forward & 1 reverse) or 8 Speed synchromesh Transmission system of 3 options with a single plate dry type clutch with air assisted hydraulic booster, the clutch has a Diameter of 380mm.
The chassis frame Section of Ashok leyland 2820 is 275 x 75 x 7mm for 20 feet to 24feet loadbody & 275mmx75mmx8mm for 26feet to 32 feet loadbody chassis.
Ashok leyland 2820 comes with semi elliptical leaf springs or Parabolic Springs at front suspension & NRS suspension or Slipper end suspension at Rear suspension.
The engine of Ashok leyland 2820 is coupled with a 6 Speed(6 forward & 1 reverse) or 8 Speed synchromesh Transmission system of 3 options with a single plate dry type clutch with air assisted hydraulic booster, the clutch has a Diameter of 380mm.
The chassis frame Section of Ashok leyland 2820 is 275 x 75 x 7mm for 20 feet to 24feet loadbody & 275mmx75mmx8mm for 26feet to 32 feet loadbody chassis.
Ashok leyland 2820 comes with semi elliptical leaf springs or Parabolic Springs at front suspension & NRS suspension or Slipper end suspension at Rear suspension.
Ashok leyland 2820 -6x2-MAV Series - Cabin & Steering System
Ashok leyland 2820 have a integral power steering, The Sleeper cabin gives a good comfort with the overall ground clearance of 273mm. The maximum speed attained is about 80kmph.
The maximum seating capacity in ashok leyland 2820 is 2 including driver & Air Conditioning is optional.
Ashok leyland 2820 have a integral power steering, The Sleeper cabin gives a good comfort with the overall ground clearance of 273mm. The maximum speed attained is about 80kmph.
The maximum seating capacity in ashok leyland 2820 is 2 including driver & Air Conditioning is optional.
Ashok leyland 2820 -6x2- MAV Series - Brake System
The service brakes are pneumatic foot operated Full air dual line system with ABS (Anti-Lock Braking System) acting on wheels & Auto exhaust brakes. The front & rear wheels are having drum brakes.
The service brakes are pneumatic foot operated Full air dual line system with ABS (Anti-Lock Braking System) acting on wheels & Auto exhaust brakes. The front & rear wheels are having drum brakes.
Ashok leyland 2820 -6x2-MAV Series - Tyre size
The Ashok leyland 2820 Series comes with tyre size of 295/90 R20-16PR.
The Ashok leyland 2820 Series comes with tyre size of 295/90 R20-16PR.
Ashok leyland 2820 Series - Fuel Capacity & Electrical
The fuel tank capacity is 200Ltr (in Tanker Variant), 300 Ltr or 375 Ltr and Adblue Capacity of 48Ltr. The Electrical system consist of 24V,120AH & 150AH for Ac Models.
The fuel tank capacity is 200Ltr (in Tanker Variant), 300 Ltr or 375 Ltr and Adblue Capacity of 48Ltr. The Electrical system consist of 24V,120AH & 150AH for Ac Models.
FEATURES-Ashok Leyland 2820 Series
- Proven iEGR Technology
- Modular design - Allows to choose truck to suit your operational requirement
- Choice Of suspension
- Lower Adblue Consumption
- Long Service intervals
- Load Body options available from 20ft to 32 ft.
- Rear Park Alert System (RPAS)
- Extended Warranty
- Proven iEGR Technology
- Modular design - Allows to choose truck to suit your operational requirement
- Choice Of suspension
- Lower Adblue Consumption
- Long Service intervals
- Load Body options available from 20ft to 32 ft.
- Rear Park Alert System (RPAS)
- Extended Warranty
Frequently asked questions about Ashok leyland 2820 6x2 Series trucks
Q. What is MAV in ashokleyland terms ?
A. MAV means Multi Axle Vehicle.
Q. What is the gvw ( Gross Vehicle Weight ) of ashokleyland 2820 Series Trucks ?
A. 28,000 Kg is the gvw of ashokleyland 2820 6x2 series trucks .
Q. What all are the available wheelbase of ashok leyland 2820 trucks?
A. 4700mm, 5050mm, 5450mm, 5750mm, 6000mm, 6600mm are wheelbase options in ashokleyland 2820 Series trucks.
Q What is the Tyre Size of ashok leyland 2820 series truck ?
A 295/90R20-16PR is the Tyre Size of leyland 2820 6x2 trucks.
Q What is the Front & Rear track width of ashok leyland 2820 series truck ?
A 295/90R20 the Front Track width is 2084mm & the rear track width is 1876mm. In case of radial tubeless tyres the track width differs as 2094mm .
Q What is the Minimum ground clearance of leyland 2820 trucks ?
A 253mm is the minimum ground clearance of leyland 2820 series trucks.
Q What is the Kerb Weight of leyland 2820 trucks ?
A Ashokleyland 2820 have a Kerb weight range between 16074kg to 19,500kg for its "Builted Body options"- chassis with load body, 90% Fuel & Tools.
Q What is the payload of Leyland 2820 trucks ?
A Ashokleyland 2820 have a payload of 12 To 8 Ton for its "Builted Body options"- chassis with load body, 90% Fuel & Tools. For Cab Chassis the payload depends on the body builted by type approved truck body builder.
Q Which type of applications does 2820 trucks ideal fit ?
A Ashok Leyland 2820 6x2 Series is specially designed for higher payload and ideal fit for applications like LPG Cylinder, Market Load, Parcel, Reefers, Tanker.
 |
 |
 |
 |
 |
Wheel base / Loading span may vary based on load-road-application selected .
Specifications are subject to change and are for reference only
