Ashok Leyland Boss 1415 HB

Latest Price ₹21,18,577.00 to ₹24,14,266.00

Ashok leyland Boss 1415HB latest price range starts from ₹21,18,577.00 to ₹24,14,266.00 lakhs onwards, Ashok leyland Boss 1415 HB Price Varies Depending on its Wheel Base, Load Body options & Specifications. Ashok leyland Boss 1415 HB is a truck with 14,050 kg gross vehicle weight. The engine powering this truck is 3840cc H series BS6 4-cylinder CRS with iGen6 Technology engine producing Power of 150 HP @ 2400 rpm and a Torque of 450 Nm @ 1250-2000 rpm.
Ashok leyland Boss 1415 HB is a 4x2 goods carrier available in load body type like FSD-Fixed side deck, DSD-Drop Side deck, HSD-High side deck & CBC-Cab & Chassis which is chassis without load body. The Ashok leyland Boss 1415 HB comes with a 3400mm, 3900mm, 4500mm, 4900mm, 5200mm wheelbase options & load body span of 14ft (4.3m), 17ft (5.2m), 20ft (6.1m), 22ft (6.7m), 24ft (7.3m).
The specifications of Ashok leyland Boss 1415 HB are well described below, if you are serious about buying a new truck then refer to truckexpert.in for the latest range of trucks available in India.

Ashok Leyland Boss 1415 HB chassis drawings

Ashok Leyland boss 1415HB chassis layout

The Detailed Specification Of Ashok Leyland Boss 1415 HB Truck Variant are as described below

Ashok leyland Boss 1415 HB option 1- Ashok leyland Boss 1415 HB of 3400mm wheelbase have a load body span of 14ft (4.3m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-6422mm, overall height-2674mm, overall width- 2220mm, Turning circle Diameter of 11.76m & fuel tank capacity of 105 Ltr. This vehicle comes with built body options like fixed side deck, drop side deck & high side deck load body options with an internal cargo box / load body length of 4380mm & a width of 2135mm/ 2270mm, the internal height of drop side deck is 590mm & high side deck is 1105mm.please refer the top of the page for detailed specifications.

Ashok leyland Boss 1415 HB option 2-Ashok leyland Boss 1415 HB of 3900mm wheelbase have a load body span of 17ft (5.2m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-7328mm, overall height-2674mm, overall width-2220mm & fuel tank capacity of 208Ltr. This vehicle comes with built body options like fixed side deck, drop side deck & high side deck load body options with an internal cargo box / load body length of 5285mm & a width of 2135mm/2270mm, the internal height of fixed side deck & drop side deck is 590mm & high side deck is 1105mm.please refer the top of the page for detailed specifications.

Ashok leyland Boss 1415 HB option 3-Ashok leyland Boss 1415 HB of 4500 mm wheelbase have a load body span of 20ft (6.1m) the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-8163mm, overall height- 2674mm, overall width - 2220mm, & fuel tank capacity of 208 Ltr. This vehicle comes with built body options like fixed side deck, drop side deck & high side deck load body options with an internal cargo box / load body length of 6120mm & a width of 2210mm/2270mm/2135mm, the internal height of fixed side deck is 590mm & high side deck is 1105mm.please refer the top of the page for detailed specifications.

Ashok leyland Boss 1415 HB option 4-Ashok leyland Boss 1415 HB of 4900 mm wheelbase have a load body span of 22ft (6.7m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-8893mm, overall height -2674mm, overall width- 2220mm & fuel tank capacity of 208Ltr. This vehicle comes with built body options like fixed side deck, drop side deck & high side deck load body options with an internal cargo box / load body length of 6770mm & a width of 2210mm/2270mm, the internal height of fixed side deck is 590mm & high side deck is 1105mm.please refer the top of the page for detailed specifications.

Ashok leyland Boss 1415 HB option 5-Ashok leyland Boss 1415 HB of 5200mm wheelbase have a load body span of 24ft(7.3m). The overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-9258mm, overall height- 2674mm, overall width - 2220mm, & fuel tank capacity of 208 Ltr. This vehicle comes with a built body high side deck load body option with an internal cargo box / load body length of 7317mm & a width of 2210mm, the internal height of 1105mm.please refer to the top of the page for detailed specifications.

Ashok leyland Boss 1415 HB Engine Specification-Ashok leyland Boss 1415 HB comes with a maximum engine output power of 150 hp @ 2400 rpm & a maximum torque of 450N-m @ 1250-2000 rpm at the rear drive axle, this power is Produced from a 3840cc H series BS-6 4-cylinder CRS with iGen6 Technology engine. The engine is forward control & This vehicle comes under N3 category.

Ashok leyland Boss 1415 HB Transmission & Suspension-The engine of Ashok leyland Boss 1415 HB is coupled with a 6 Speed (6 forward & 1 reverse) synchromesh ODGB FGR 6.93 Transmission system with a single plate dry type clutch with clutch booster, the clutch has a Diameter of 330mm. The chassis frame Section of Ashok leyland Boss 1415 HB is 204 x 62 x 7mm. Ashok leyland Boss 1415 HB comes with parabolic leaf spring, shock absorber with ARB at front & semi-elliptical rear suspension.

Ashok leyland Boss 1415 HB- Cabin & Steering System-Ashok leyland Boss 1415 HB have an integral power steering. The Tiltable Boss LX day cabin gives you a good comfort with the overall ground clearance of 260mm.The maximum speed attained is about 80kmph. Ashok leyland Boss 1415 HB- Brake System The service brakes are pneumatic foot operated dual line systems acting on wheels & Parking Brakes at rear wheels only. The front & rear wheels have drum brakes.

Ashok leyland Boss 1415 HB Tyre size-The Ashok leyland Boss 1415 HB comes with a tyre size of 8.25 R20 16PR.the front wheel track is 1888mm & Rear wheel track is 1690mm.

Ashok leyland Boss 1415 HB option 1

Ashok leyland Boss 1415 HB of 3400mm wheelbase have a load body span of 14ft (4.3m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-6422mm, overall height-2674mm, overall width- 2220mm, Turning circle Diameter of 11.76m & fuel tank capacity of 105 Ltr. This vehicle comes with built body options like fixed side deck, drop side deck & high side deck load body options with an internal cargo box / load body length of 4380mm & a width of 2135mm/ 2270mm, the internal height of drop side deck is 590mm & high side deck is 1105mm.please refer the top of the page for detailed specifications.

Ashok leyland Boss 1415 HB option 2

Ashok leyland Boss 1415 HB of 3900mm wheelbase have a load body span of 17ft (5.2m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-7328mm, overall height-2674mm, overall width-2220mm & fuel tank capacity of 208Ltr. This vehicle comes with built body options like fixed side deck, drop side deck & high side deck load body options with an internal cargo box / load body length of 5285mm & a width of 2135mm/2270mm, the internal height of fixed side deck & drop side deck is 590mm & high side deck is 1105mm.please refer the top of the page for detailed specifications.

Ashok leyland Boss 1415 HB option 3

Ashok leyland Boss 1415 HB of 4500 mm wheelbase have a load body span of 20ft (6.1m) the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-8163mm, overall height- 2674mm, overall width - 2220mm, & fuel tank capacity of 208 Ltr. This vehicle comes with built body options like fixed side deck, drop side deck & high side deck load body options with an internal cargo box / load body length of 6120mm & a width of 2210mm/2270mm/2135mm, the internal height of fixed side deck is 590mm & high side deck is 1105mm.please refer the top of the page for detailed specifications.

Ashok leyland Boss 1415 HB option 4

Ashok leyland Boss 1415 HB of 4900 mm wheelbase have a load body span of 22ft (6.7m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-8893mm, overall height -2674mm, overall width- 2220mm & fuel tank capacity of 208Ltr. This vehicle comes with built body options like fixed side deck, drop side deck & high side deck load body options with an internal cargo box / load body length of 6770mm & a width of 2210mm/2270mm, the internal height of fixed side deck is 590mm & high side deck is 1105mm.please refer the top of the page for detailed specifications.

Ashok leyland Boss 1415 HB option 5

Ashok leyland Boss 1415 HB of 5200mm wheelbase have a load body span of 24ft(7.3m). The overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-9258mm, overall height- 2674mm, overall width - 2220mm, & fuel tank capacity of 208 Ltr. This vehicle comes with a built body high side deck load body option with an internal cargo box / load body length of 7317mm & a width of 2210mm, the internal height of 1105mm.please refer to the top of the page for detailed specifications.

Ashok leyland Boss 1415 HB- Engine Specification

Ashok leyland Boss 1415 HB comes with a maximum engine output power of 150 hp @ 2400 rpm & a maximum torque of 450N-m @ 1250-2000 rpm at the rear drive axle, this power is Produced from a 3840cc H series BS-6 4-cylinder CRS with iGen6 Technology engine. The engine is forward control & This vehicle comes under N3 category.

Ashok leyland Boss 1415 HB- Transmission & Suspension

The engine of Ashok leyland Boss 1415 HB is coupled with a 6 Speed (6 forward & 1 reverse) synchromesh ODGB FGR 6.93 Transmission system with a single plate dry type clutch with clutch booster, the clutch has a Diameter of 330mm. The chassis frame Section of Ashok leyland Boss 1415 HB is 204 x 62 x 7mm. Ashok leyland Boss 1415 HB comes with parabolic leaf spring, shock absorber with ARB at front & semi-elliptical rear suspension.

Ashok leyland Boss 1415 HB- Cabin & Steering System

Ashok leyland Boss 1415 HB have an integral power steering. The Tiltable Boss LX day cabin gives you a good comfort with the overall ground clearance of 260mm.The maximum speed attained is about 80kmph.

Ashok leyland Boss 1415 HB- Brake System

The service brakes are pneumatic foot operated dual line systems acting on wheels & Parking Brakes at rear wheels only. The front & rear wheels have drum brakes.

Ashok leyland Boss 1415 HB- Tyre size

The Ashok leyland Boss 1415 HB comes with a tyre size of 8.25 R20 16PR.the front wheel track is 1888mm & Rear wheel track is 1690mm.

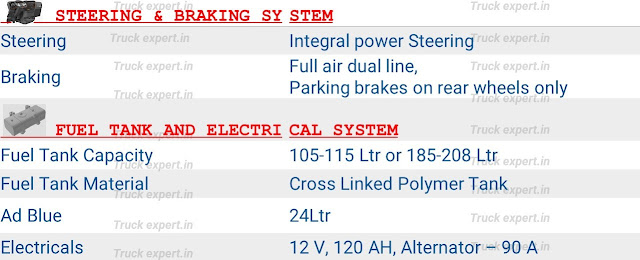

Ashok leyland Boss 1415 HB- Fuel Capacity & Electrical

The fuel capacity of metallic tank is 105 Ltr or 208 Ltr and Adblue Capacity of 24Ltr. The Electrical system consist of 12V,120AH, 90A- alternator.

FEATURES-Ashok Leyland Boss 1415 HB

Proven iEGR Technology

Gear shift adviser system (GSAS)

Lower Adblue Consumption

Sleeping Provision in day Cabin

Tilt & Telescopic Steering wheels

Rear Park Alert System (RPAS)

FREQUENTLY ASKED QUESTIONS about Ashok Leyland boss 1415 HB Truck

Q. What is the gvw ( Gross Vehicle Weight ) of ashokleyland Boss1415 HB ?

A. 14050 Kg is the gvw of ashokleyland 1415 HB .

Q. What all are the available wheelbase of ashokleyland boss 1415 HB truck?

A. 3400mm,3900mm,4500mm,4900mm,5200mm are the available wheelbase for ashokleyland boss1415 HB.

Q What is the Tyre Size of ashok leyland boss 1415 HB ?

A 8.25R20-16PR is the Tyre size of Ashok Leyland 1415 HB

Q What is the Kerb Weight of ashokleyland boss 1415 HB truck ?

A Ashokleyland 1415HB have a Kerb weight of 4166kg to 4423Kg depending upon wheel base for its "cab chassis- chassis with no load body"

Q What is the payload of Ashokleyland 1415 HB ?

A Ashokleyland 1415HB have a payload of 9,882Kg to 9,627Kg depending upon wheel base for its "cab chassis- chassis with no load body".

Q What is the front Track width of Ashok Leyland boss 1415 HB ?

A 1888mm is the front track width of ashok leyland 1415 HB.

Q What is the rear Track width of Ashok Leyland boss 1415 HB ?

A 1690mm is the front track width of ashok leyland 1415 HB.

Q Which type of Application does Ashokleyland boss 1415 HB truck ideal fit ?

A Ashok Leyland Boss 1415HB is specially designed for higher payload and ideal fit for applications like Poultry goods, E-commerce, White goods, Fruits & vegetables, Autoparts, Beverages , Parcel & Logistics.
