Ashok Leyland 4825 10x2 DTLA

The Latest Price Range of Ashok Leyland 4825 DTLA MAV(Multi Axle Vehicle) Starts From ₹43,71,336.00 Lakhs onwards, The Price Of Ashok Leyland 4825 DTLA MAV Varies Depending on its Wheel Base, Load Body options & Specifications.

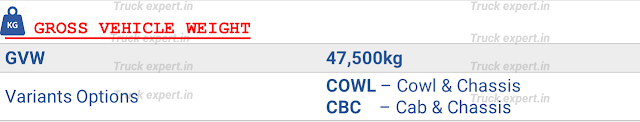

Ashok Leyland 4825 10x2 DTLA is a truck with 47,500Kg gross vehicle weight.

The engine powering this truck has 2 options one is 5760 cc H series BS-6 6-cylinder,inline with iGen6 Technology producing Power of 250 HP @ 2400 rpm and a Torque of 700 Nm @ 1200-1900 rpm,

The second engine option is 6010 cc A series BS-6 4-cylinder,inline with iGen6 Technology producing Power of 250 HP @ 2200 rpm and a Torque of 900 Nm @ 1100-1800 rpm,

Ashok Leyland 4825 DTLA is Available in chassis options like COWL / CBC- Cowl / Cab & Chassis in which load body should be built from a Type Approved Body builder

The 4825 10x2 DTLA comes with a wheelbase combination of 6600mm with a load body span of 28ft (8.5m) & 30ft (9.1m) .

The Detailed Specification of 4825 DTLA Variant are well described below, if you are serious about buying a new truck then refer to truckexpert.in for the latest range of trucks available in India.

Ashok Leyland 4825 10x2 DTLA - Chassis Drawings

Ashok Leyland 4825 10x2 DTLA is a truck with 47,500Kg gross vehicle weight, Ashok Leyland 4825 gross vehicle weight,Ashok Leyland 4825 GVW, Ashok Leyland 4825 gvw

Ashok leyland 4825 DTLA MAV option 1 Ashok leyland 4825 DTLA of 6600 mm Wheelbase have a load body span of 28ft (8.5m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-10960mm, overall height -2987mm / 3247mm / 3177mm, overall width-2570m, turning circle radius of 23.7m & cross-linked polymer fuel tank capacity of 220 Ltr / 300Ltr / 375 Ltr. CHASSIS OPTIONS : CBC, COWL.

Ashok leyland 4825 DTLA MAV option 2 Ashok leyland 4825 DTLA of 6600 mm Wheelbase have a load body span of 30ft (9.1m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-11560mm, overall height -2987mm/3247mm/ 3177mm, overall width-2570m, turning circle radius of 23.7m & cross-linked polymer fuel tank capacity of 220 Ltr / 300Ltr / 375 Ltr. CHASSIS OPTIONS : CBC, COWL.

Ashok leyland 4825 DTLA MAV - Engine Specification Engine Option 1 - H6E6F25 Ashok leyland 4825 10X2 DTLA MAV comes with a H series BSVI 6-Cylinder i-Gen Technology Engine with a maximum engine output of 250 Hp @ 2400 rpm & a maximum torque of 900N-m @ 1200-1900rpm at the rear drive axle, this power is produced from a 5760cc Bs6 engine.

Ashok leyland 4825 DTLA MAV - Engine Specification-Engine Option 2 - A4E6F25 Ashok leyland 4825 10X2 DTLA MAV comes with a A series BSVI 4-Cylinder i-Gen Technology Engine with a maximum engine output of 250 Hp @ 2200 rpm & a maximum torque of 900N-m @ 1100-1800rpm at the rear drive axle, this power is produced from a 6010cc Bs6 engine.

Ashok leyland 4825 DTLA MAV- Chassis Frame & Suspension - The chassis frame Section of Ashok leyland 4825 DTLA is 275x75x (8mm+6mm). Ashok Leyland 4825 comes with Semi-elliptic Multi Leaf or Parabolic springs at Front axle & Non-Reactive Suspension or Slipper end suspension at Rear axle.

Ashok leyland 4825 DTLA MAV- Steering System Ashok leyland 4825 have a Hydraulic assisted power steering. Ashok leyland 4825 DTLA MAV- Fuel Tank & Electrical The fuel capacity of cross-linked polymer tank is 220Ltr or 375Ltr and Adblue capacity of 48Ltr. The Electrical system consists of 24V,120AH batteries & 150Ah for Air-conditioned vehicles.

Ashok leyland 4825 DTLA MAV- Tyre size 295 / 90 R20- 16PR, Ashok leyland 4825 MAV - Cabin The Leyland 4825 MAV truck has an option of 3 cabins “M-Cabin”, “N-Cabin”, “U-Cabin”. The “N” Type premium sleeper cabin gives a good comfort with a maximum seating capacity of 2 persons including driver. The air conditioning is optional in Ashok leyland 4825.

Ashok leyland 4825 DTLA MAV option 1

Ashok leyland 4825 DTLA of 6600 mm Wheelbase have a load body span of 28ft (8.5m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-10960mm, overall height -2987mm / 3247mm / 3177mm, overall width-2570m, turning circle radius of 23.7m & cross-linked polymer fuel tank capacity of 220 Ltr / 300Ltr / 375 Ltr.

CHASSIS OPTIONS : CBC, COWL.

Ashok leyland 4825 DTLA MAV option 2

Ashok leyland 4825 DTLA of 6600 mm Wheelbase have a load body span of 30ft (9.1m), the overall dimensions of cab & chassis (chassis without load body) are mentioned above including its overall length-11560mm, overall height -2987mm/3247mm/ 3177mm, overall width-2570m, turning circle radius of 23.7m & cross-linked polymer fuel tank capacity of 220 Ltr / 300Ltr / 375 Ltr.

CHASSIS OPTIONS : CBC, COWL.

Ashok leyland 4825 DTLA MAV - Engine Specification

Engine Option 1 - H6E6F25

Ashok leyland 4825 10X2 DTLA MAV comes with a H series BSVI 6-Cylinder i-Gen Technology Engine with a maximum engine output of 250 Hp @ 2400 rpm & a maximum torque of 900N-m @ 1200-1900rpm at the rear drive axle, this power is produced from a 5760cc Bs6 engine.

Engine Option 2 - A4E6F25

Ashok leyland 4825 10X2 DTLA MAV comes with a A series BSVI 4-Cylinder i-Gen Technology Engine with a maximum engine output of 250 Hp @ 2200 rpm & a maximum torque of 900N-m @ 1100-1800rpm at the rear drive axle, this power is produced from a 6010cc Bs6 engine.

Ashok leyland 4825 DTLA MAV- Transmission & Suspension

The engine of Ashok leyland 4825 10X2 is coupled with a 9 speed synchromesh Transmission system with a single plate dry plate Ceramic clutch with air assisted hydraulic booster, the clutch has a Diameter of 380mm or 395mm.

The chassis frame Section of Ashok leyland 4825 DTLA is 275x75x (8mm+6mm).

Ashok Leyland 4825 comes with Semi-elliptic Multi Leaf or Parabolic springs at Front axle & Non-Reactive Suspension or Slipper end suspension at Rear axle.

Ashok leyland 4825 DTLA MAV- Steering System

Ashok leyland 4825 have a Hydraulic assisted power steering.

Ashok leyland 4825 MAV - Cabin

The Leyland 4825 MAV truck has an option of 3 cabins “M-Cabin”, “N-Cabin”, “U-Cabin”. The “N” Type premium sleeper cabin gives a good comfort with a maximum seating capacity of 2 persons including driver.

The air conditioning is optional in Ashok leyland 4825.

Ashok leyland 4825 DTLA MAV- Brake System

The service brakes are pneumatic foot operated full air dual line systems with ABS & Auto Slack adjuster. The front & rear wheels have drum brakes.

Ashok leyland 4825 DTLA MAV- Tyre size

295 / 90 R20- 16PR

Ashok leyland 4825 DTLA MAV- Fuel Tank & Electrical

The fuel capacity of cross-linked polymer tank is 220Ltr or 375Ltr and Adblue capacity of 48Ltr.

The Electrical system consists of 24V,120AH batteries & 150Ah for Air-conditioned vehicles.

FREQUENTLY ASKED QUESTIONS about Ashok Leyland 4825 DTLA Truck.

Q. What is DTLA in ashok leyland truck variants ?

A. Dual Tyre Lift Axle is the abbreviation of DTLA.

Q. What is MAV in ashok leyland truck variants ?

A. Multi Axle Vehicle is the abbreviation of MAV.

Q. What is the gvw ( Gross Vehicle Weight ) of ashok leyland 4825 10x2 DTLA?

A. 47,500 Kg is the gvw of ashok leyland 4825 DTLA.

Q. Available Load Body Options in Ashok Leyland 4825 DTLA Truck ?

A. Ashok Leyland 4825 is available in 28ft (8.5m), 30ft (9.1m) Load body span.

Q. What is the available wheelbase of ashok leyland 4825 DTLA truck?

A. 6600mm are the available wheelbase for ashok leyland 4825 10x2 DTLA.

Q What is the Tyre Size of Ashok Leyland 4825 DTLA truck ?

A 295/90R20 – 16 PR is the Tyre size of ashok leyland 4825 DTLA.

Q Which type of Applications does Ashok Leyland 4825 truck ideal fit ?

A Ashok Leyland 4825 is specially designed for higher payload and ideal fit for applications like Market Load, Cement, Iron & Steel, Tanker, Construction Material.
